PART REFERENCE

CJG-0381-040

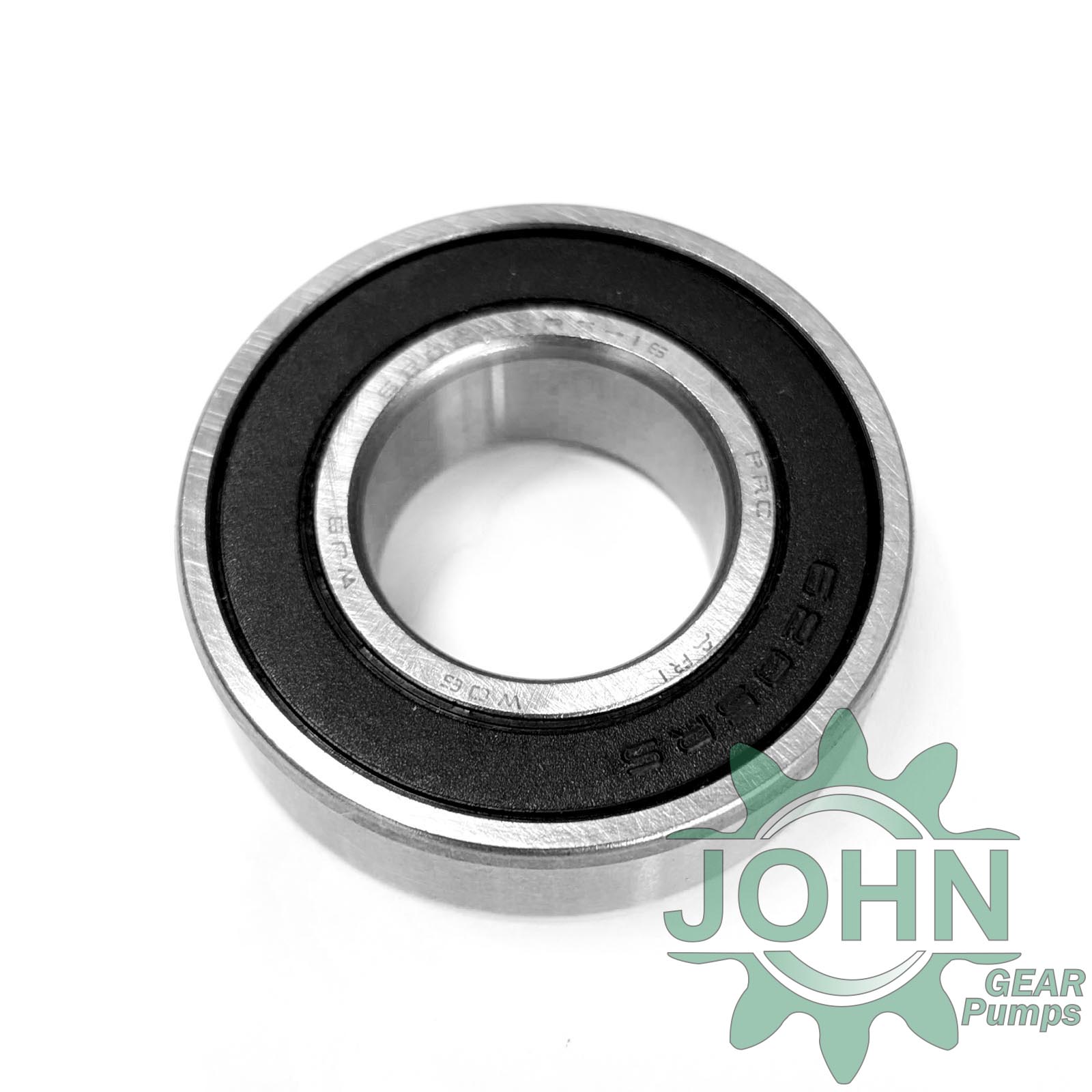

30/31/330 SHAFT BEARING

CJG-0381-040

LIST PRICE

$24.65 CAD

Volume discounts and special pricing available for resellers. Contact us to learn more.

Part type
SHAFT BEARING
Used in
Pump and motor
Crossover references
391-0381-040 · M4020381040 · X69-40 · 30-SHFTBRG
Series
21 30 31 330

BRG,BALL=1.00IDX2.05ODX0.59W,DBL-SEAL

Reference printed: 10/16/2026 · List prices in CAD

Sections using this part

Quantities apply to the named section. A part may be used in several sections and series.

SectionDescriptionSeriesQuantity in section
4056 ROUND FLANGE C/W SHAFT BRG. CW (special order)211
442SAE 4 BOLT B FLANGE C/W SHAFT BRG CW211
446SAE B 2/4 MOUNT C/W SHAFT BRG CW211
494SAE 2 BOLT A FLANGE C/W SHAFT BRG CW211
497SAE 2 BOLT B FLANGE C/W SHAFT BRG CW211
5056 ROUND FLANGE C/W SHAFT BRG. CCW (special order)211
542SAE 4 BOLT B FLANGE C/W SHAFT BRG CCW211
546SAE B 2/4 MOUNT C/W SHAFT BRG CCW211
594SAE 2 BOLT A FLANGE C/W SHAFT BRG CCW211
597SAE 2 BOLT B FLANGE C/W SHAFT BRG CCW211
6056 ROUND FLANGE C/W SHAFT BRG. BI (special order)211
642SAE 4 BOLT B FLANGE C/W SHAFT BRG BI211
646SAE B 2/4 MOUNT C/W SHAFT BRG BI211
694SAE 2 BOLT A FLANGE C/W SHAFT BRG BI211
697SAE 2 BOLT B FLANGE C/W SHAFT BRG BI211
8056 ROUND FLANGE C/W SHAFT BRG. BI MOTOR (special order)211
842SAE 4 BOLT B FLANGE C/W SHAFT BRG BI MOTOR211
846SAE B 2/4 MOUNT C/W SHAFT BRG BI MOTOR211
894SAE 2 BOLT A FLANGE C/W SHAFT BRG BI MOTOR211
897SAE 2 BOLT B FLANGE C/W SHAFT BRG BI MOTOR211
9056 ROUND FLANGE BI MOTOR (special order)211
400PAD MOUNT C/W SHAFT BRG CW301
4056 ROUND FLANGE C/W SHAFT BRG CW301
442SAE 4 BOLT B FLANGE C/W SHAFT BRG CW301
446SAE B 2/4 MOUNT C/W SHAFT BRG CW301
478SAE 4 BOLT C FLANGE C/W SHAFT BRG CW301
494SAE 2 BOLT A FLANGE C/W SHAFT BRG CW301
497SAE 2 BOLT B FLANGE C/W SHAFT BRG CW301
500PAD MOUNT C/W SHAFT BRG CCW301
5056 ROUND FLANGE C/W SHAFT BRG CCW301
542SAE 4 BOLT B FLANGE C/W SHAFT BRG CCW301
546SAE B 2/4 MOUNT C/W SHAFT BRG CCW301
578SAE 4 BOLT C FLANGE C/W SHAFT BRG CCW301
594SAE 2 BOLT A FLANGE C/W SHAFT BRG CCW301
597SAE 2 BOLT B FLANGE C/W SHAFT BRG CCW301
600PAD MOUNT C/W SHAFT BRG BI301
6056 ROUND FLANGE C/W SHAFT BRG BI301
605*6 BOLT ROUND (SPECIAL FLANGE) WITH SHAFT BRG BI301
642SAE 4 BOLT B FLANGE C/W SHAFT BRG BI301
646SAE B 2/4 MOUNT C/W SHAFT BRG BI301
678SAE 4 BOLT C FLANGE C/W SHAFT BRG BI301
694SAE 2 BOLT A FLANGE C/W SHAFT BRG BI301
697SAE 2 BOLT B FLANGE C/W SHAFT BRG BI301
800PAD MOUNT C/W SHAFT BRG BI MOTOR301
8056 ROUND FLANGE C/W SHAFT BRG BI MOTOR301
842SAE 4 BOLT B FLANGE C/W SHAFT BRG BI MOTOR301
846SAE B 2/4 MOUNT C/W SHAFT BRG BI MOTOR301
878SAE 4 BOLT C FLANGE C/W SHAFT BRG BI MOTOR301
894SAE 2 BOLT A FLANGE C/W SHAFT BRG BI MOTOR301
897SAE 2 BOLT B FLANGE C/W SHAFT BRG BI MOTOR301
400PAD MOUNT C/W SHAFT BRG CW311
4056 ROUND FLANGE C/W SHAFT BRG CW311
442SAE 4 BOLT B FLANGE C/W SHAFT BRG CW311
446SAE B 2/4 MOUNT C/W SHAFT BRG CW311
478SAE 4 BOLT C FLANGE C/W SHAFT BRG CW311
494SAE 2 BOLT A FLANGE C/W SHAFT BRG CW311
497SAE 2 BOLT B FLANGE C/W SHAFT BRG CW311
500PAD MOUNT C/W SHAFT BRG CCW311
5056 ROUND FLANGE C/W SHAFT BRG CCW311
542SAE 4 BOLT B FLANGE C/W SHAFT BRG CCW311
546SAE B 2/4 MOUNT C/W SHAFT BRG CCW311
578SAE 4 BOLT C FLANGE C/W SHAFT BRG CCW311
594SAE 2 BOLT A FLANGE C/W SHAFT BRG CCW311
597SAE 2 BOLT B FLANGE C/W SHAFT BRG CCW311
600PAD MOUNT C/W SHAFT BRG BI311
6056 ROUND FLANGE C/W SHAFT BRG BI311
642SAE 4 BOLT B FLANGE C/W SHAFT BRG BI311
646SAE B 2/4 MOUNT C/W SHAFT BRG BI311
678SAE 4 BOLT C FLANGE C/W SHAFT BRG BI311
694SAE 2 BOLT A FLANGE C/W SHAFT BRG BI311
697SAE 2 BOLT B FLANGE C/W SHAFT BRG BI311
800PAD MOUNT C/W SHAFT BRG BI MOTOR311
8056 ROUND FLANGE C/W SHAFT BRG BI MOTOR311
842SAE 4 BOLT B FLANGE C/W SHAFT BRG BI MOTOR311
846SAE B 2/4 MOUNT C/W SHAFT BRG BI MOTOR311
878SAE 4 BOLT C FLANGE C/W SHAFT BRG BI MOTOR311
894SAE 2 BOLT A FLANGE C/W SHAFT BRG BI MOTOR311
897SAE 2 BOLT B FLANGE C/W SHAFT BRG BI MOTOR311
442SAE 4 BOLT B FLANGE C/W SHAFT BRG CW3301
478SAE 4 BOLT C FLANGE C/W SHAFT BRG CW3301
497SAE 2 BOLT B FLANGE C/W SHAFT BRG CW3301
542SAE 4 BOLT B FLANGE C/W SHAFT BRG CCW3301
578SAE 4 BOLT C FLANGE C/W SHAFT BRG CCW3301
597SAE 2 BOLT B FLANGE C/W SHAFT BRG CCW3301
642SAE 4 BOLT B FLANGE C/W SHAFT BRG BI3301
646SAE 2/4 BOLT B FLANGE C/W SHAFT BRG BI3301
842SAE 4 BOLT B FLANGE C/W SHAFT BRG MOTOR3301
878SAE 4 BOLT C FLANGE C/W SHAFT BRG MOTOR3301
897SAE 2 BOLT B FLANGE C/W SHAFT BRG MOTOR3301

Showing shared sections across all series. These are companion components, not substitute parts. Quantities are listed per section.

CJG-0381-068

ROLLER BEARING (RBC)

$47.00 CAD

Quantity needed: 2

CJG-2286-004

PUMP PRESSURE PLUG - ALL SERIES

$7.05 CAD

Quantity needed: 1

CJG-3381-040

M30/31/330 SEAL RETAINER

$9.40 CAD

Quantity needed: 1

01HEX-04

CASE DRAIN PLUG

Please call

Quantity needed: 1

C31-5053-202

P30 SEC CODE 46 2/4BLT B MNT

Please call

Quantity needed: 1

05HEX-04

CASE 1/4" DRAIN PLUG O.R.B.

$2.52 CAD

Quantity needed: 1

C21-5043-201

P20 #05 6BLT RND MNT W/2.625 PLT

Please call

Quantity needed: 1

C21-5053-202

P20 #46 2/4BLT B MNT

Please call

Quantity needed: 1

C30-5033-201

P330 SEC #42 4BLT B MNT NO BUSH

$244.40 CAD

Quantity needed: 1

C31-5013-201

P30 SEC CODE 00 PAD MNT

Please call

Quantity needed: 1

C31-5017-201

P30 SEC CODE 00 PAD MNT

$225.60 CAD

Quantity needed: 1

C31-5023-202

P30 SEC CODE 97 2BLT B MNT

Please call

Quantity needed: 1

C31-5023-205

P30 SEC CODE 94 2BLT A MNT

Please call

Quantity needed: 1

C31-5027-201

P30 SEC CODE 97 2BLT B MNT

Please call

Quantity needed: 1

C31-5027-204

P30 SEC CODE 94 2BLT A MNT

Please call

Quantity needed: 1

C31-5033-201

P30 SEC CODE 42 4BLT B MNT

Please call

Quantity needed: 1

C31-5033-202

P30 SEC CODE 78 4BLT C MNT

Please call

Quantity needed: 1

C31-5037-201

P30 SEC CODE 42 4BLT B MNT

Please call

Quantity needed: 1

C31-5037-202

P30 SEC CODE 78 4BLT C MNT

Please call

Quantity needed: 1

C31-5043-201

P30 SEC #05 6BLT RND MNT W/2.625PLT

Please call

Quantity needed: 1

C31-5047-201

P30 SEC #05 6BLT RND MNT W/2.625PLT

Please call

Quantity needed: 1

C21-5043-401

M20 #05 6BLT RND MNT W/2.625 PLT

Please call

Quantity needed: 1

C30-5023-201

P330 SEC #97 2 BOLT B MNT, NO BUSHING, WITH CHECK PORT, DOWELED

$225.60 CAD

Quantity needed: 1

C30-5033-202

P330 SEC #78 4BLT C MNT NO BUSH

$291.40 CAD

Quantity needed: 1

C31-5053-402

M30 SEC CODE 46 2/4BLT B MNT

$263.20 CAD

Quantity needed: 1

C21-5020-401

21 SEC #97 2 BOLT B MOUNT W/CASE DRAIN, DOWELED

$188.00 CAD

Quantity needed: 1

C21-5020-404

21 SEC #94 2 BOLT A W/CASE DRAIN, DOWELED

$178.60 CAD

Quantity needed: 1

C21-5030-401

21 SEC #42 4 BOLT B W/CASE DRAIN, DOWELED

$206.80 CAD

Quantity needed: 1

C21-5053-402

21, SEC #46 2/4 BOLT B W/CASE DRAIN, DOWELED

$197.40 CAD

Quantity needed: 1

C30-5023-401

M330 SEC # 97 2BLT B MNT NO BUSH

Please call

Quantity needed: 1

C30-5033-401

M330 SEC #42 4 BOLT B MNT, NO BUSHING, WITH CHECK PORTS, DOWELED

Please call

Quantity needed: 1

C30-5033-402

M330 SEC #78 4BLT C MNT NO BUSH

Please call

Quantity needed: 1

C30-5053-202

2/4 BOLT SHAFT END COVER

$272.60 CAD

Quantity needed: 1

C31-5013-401

M30 SEC CODE 00 PAD MOUNT

Please call

Quantity needed: 1

C31-5017-401

M30 SEC CODE 00 PAD MNT

$294.24 CAD

Quantity needed: 1

C31-5023-402

M30 SEC CODE 97 2BLT B MNT

Please call

Quantity needed: 1

C31-5023-405

M30 SEC CODE 94 2BLT A MNT

Please call

Quantity needed: 1

C31-5027-401

M30 SEC CODE 97 2BLT B MNT

$216.20 CAD

Quantity needed: 1

C31-5027-404

M30 SEC CODE 94 2BLT A MNT

$188.00 CAD

Quantity needed: 1

C31-5033-402

M30 SEC CODE 78 4BLT C MNT

Please call

Quantity needed: 1

C31-5033-601

M30 SEC CODE 42 4BLT B MNT

Please call

Quantity needed: 1

C31-5037-401

M30 SEC CODE 42 4BLT B MNT

$216.20 CAD

Quantity needed: 1

C31-5037-402

M30 SEC CODE 78 4BLT C MNT

$282.00 CAD

Quantity needed: 1

C31-5043-205

SPL. 6 BOLT ROUND S.E.C. WITH LARGE PILOT

Please call

Quantity needed: 1

C31-5043-601

M30 SEC #05 6BLT RND MNT W/2.625PLT

Please call

Quantity needed: 1

C31-5047-401

M30 SEC #05 6BLT RND MNT W/2.625PLT

$278.48 CAD

Quantity needed: 1

CJG-3383-069

30/31/330 BEARING SPACER

$9.40 CAD

Quantity needed: 1
